High-quality marine engine spare parts.

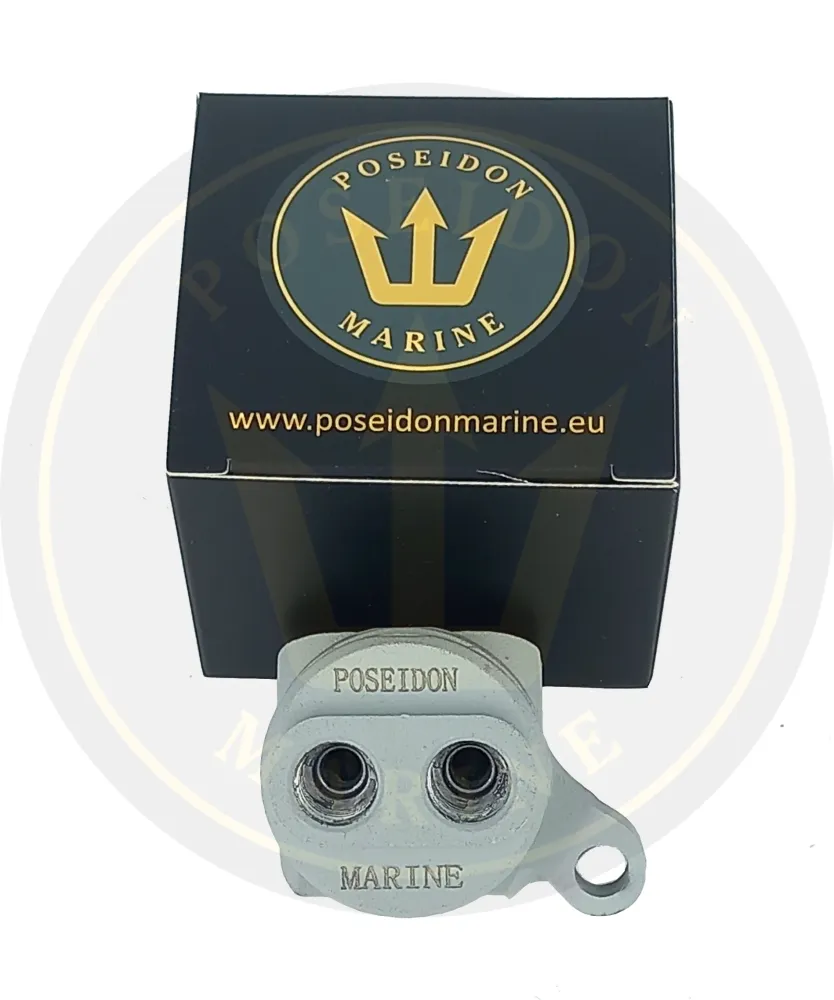

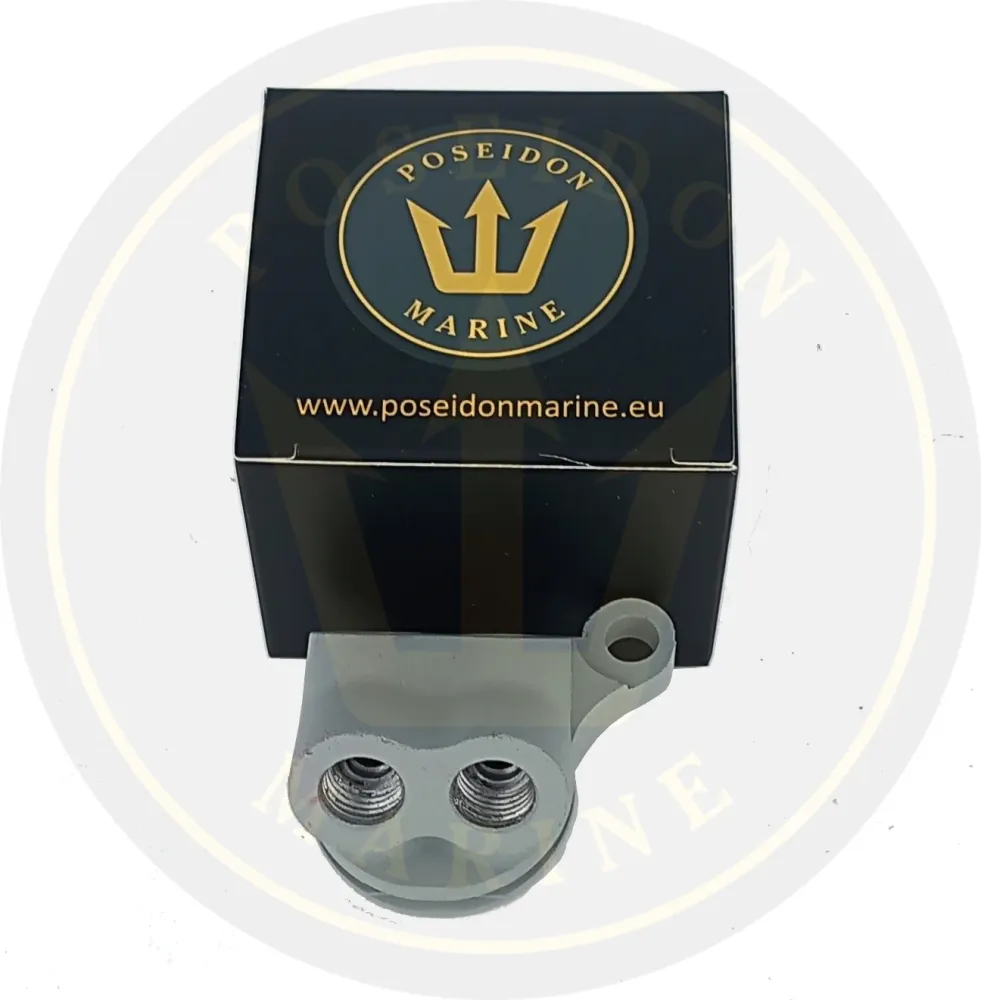

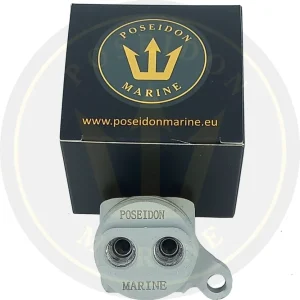

Poseidon Marine® hydraulic manifold block, suitable for the following SX transoms.
- TSK SX-C TSK SX-C1 TSK SX-C1AC TSK SX-C2AC TSK SX-CLT M10 TSK SX-CLT1
- TSK SX-M TSK SX-MACLT TSK SX-MBAC TSK SX-MDA TSK SX-MDB TSK SX-MDC
- TSK SX-MHP TSK SX-MLT
- TSK SX-R TSK SX-R1 TSK SX-R2 TSK SX-S TSK SX-SLT
This small aluminum block distributes the trim oil from the oil pump through the hoses 3853825 to the trimming cylinders.
The following supplementary (add-Onn) parts will be needed, if you do not have them in stock.
O-rings 3852165 6pcs required
O-ring 3852169 1pc required.
Earlier AFT connection cylinders (3852414 3885196) need the following hoses:
- 3853854 (STDB down) 3853856 (PORT down)
- 3853855 (STDB up) 3853857 (PORT up)
Later FORE connection (3857470 3857471) cylinders need the following hoses:
- 3857524 (STDB down) 3857523 (PORT down)
- 3853855 (STDB up) 3853857 (PORT up)
Poseidon Marine® Hydraulic Manifold Block for Volvo Penta SX replaces 3852559
This product replaces the following manufacturer’s part nr:
- Volvo Penta: 3852559
- Poseidon Marine order number: PM3852559
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
