Sherwood® 24841 water pump repair kit (minor) G2603-01 G2603X G2610X

High-quality marine engine spare parts.

Sherwood® 24841 minor water pump repair kit, suitable for the following pumps:

• G2603-01, G2603-02, G2603-03, G2603X
• G2604-01, G2605-01, G2607-01, G2607X, G2610X

If you have the early style pump that has a replaceable cam and a round wearplate, then this is not the correct kit. The early pump can be identified by having a screw between the 2 flange ports that is used to hold the cam in place.

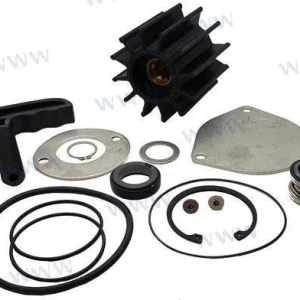

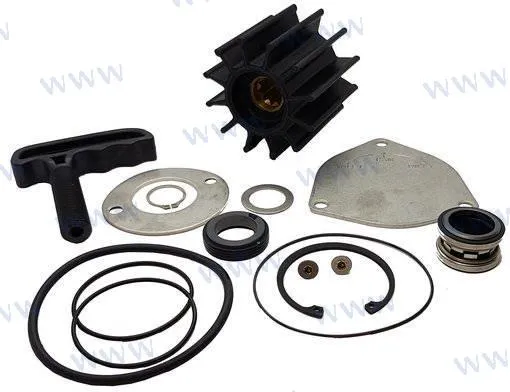

This kit contains:

• Impeller 26000
• Puller
• O-ring 1710-0212
• Seal & seat 23837
• O-ring 19879
• Water pump cover 24074
• Wear plate 24790
• Washer 19866
• Snap ring 19762
• Snap ring 24052

Impeller specifications:

• Diameter: 3-3/4″ ~ 95.25mm
• Width: 3-1/8″ ~ 79.40mm
• Shaft: 11/12″ ~ 23.30mm
• Blades: 12
• Keyway: 10 tooth spline
• Material: Neoprene

This product replaces the following manufacturer’s part nr:

• Sherwood Pumps order number: 24841, SHE24841

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
