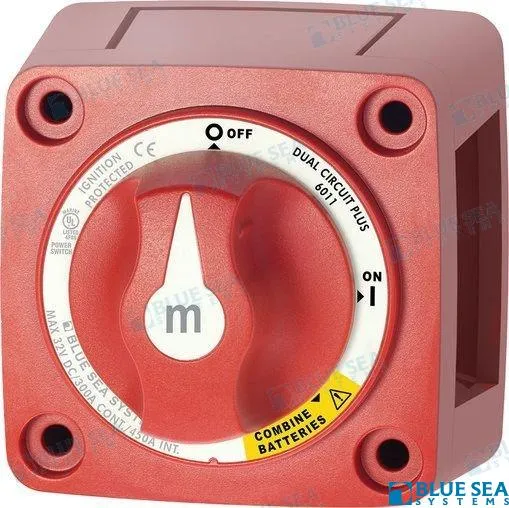

(Mini) Battery Switch Dual Circuit Plus™
- Make before break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
Specifications
| Cranking Rating: 10 sec. | 1,000 Amps |
| Intermittent Rating: 5 min. | 450 Amps |
| Continuous Rating | 300 Amps |
| Maximum Voltage Rating | 32 Volts DC |
| Terminal Stud Size | 3/8″-16 (M10) |
| Terminal Stud Torque | 120 in-lb (13.56 N·m) max. |
| Mounting Holes | Accept #10 Screw |
| Cable Size to Meet Ratings | 4/0 AWG (95mm²) |
| Cable Clearance For 4/0 AWG Cables | 1.12″ (28.4mm) |
| Weight Lb (Kg) | 0.80 (0.36) |
Certifications & Agency Standards
- CE Marked
- UL Listed – UL 1107 electric power switches
- Meets American Boat and Yacht Council (ABYC) requirements
- Meets UL 1500 and SAE J1171 external ignition protection requirements
